This script also builds the wall with cutouts and places a rose window into the round cutout. This is the script you would use as your final script.
1. Copy the script in the column below.
|
! all ! Hide ! merge c:\tutorialscripts\plans\Oecusfacade.3dm ! Selcurve ! Extrude Cap=Yes -0.4 delete ! enter ! merge c:\tutorialscripts\elements\rosewindow.3dm Lastcreated move w0,0,0 w-13.519,-0.00041,3.46361 selnone show |
2. Make sure perspective viewport is active.
3. Run the script by clicking the commandpaste icon.

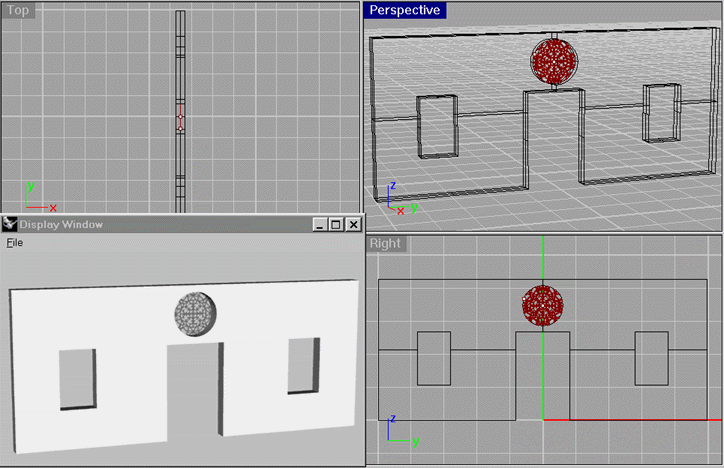

The script created a wall with window and door cutouts and placed
a Rose window grille in the round cutout.
4. Quick Render the model
5. Select all and delete. Exit the drawing when prompted
to save enter no.
